SKU #: VNCH1009

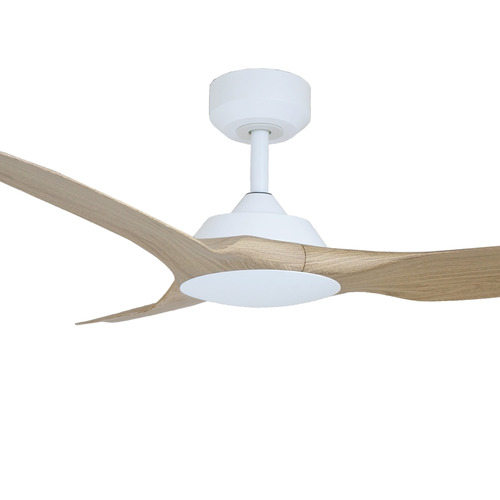

Bring smart comfort to your home with the Raven RWS DC Smart Ceiling Fan. The aluminium body houses a DC motor and reversible summer-winter airflow to help keep rooms comfortable all year. Operate the fan by remote, wall control, or smart applications for flexible control. Designed for indoor and under cover outdoor use, it delivers strong air movement across living areas, bedrooms and alfresco spaces. A balance kit assists steady operation, and the tri-control system suits your lifestyle.
Features:
- Includes: 1 x smart ceiling fan with DC motor, 3 x fan blades, 1 x remote control, 2 x AAA batteries, 1 x wall control, 1 x balance kit, 1 x 12.7cm extension, 1 x 25.4cm extension rod, 1 x assembly manual
- Remote control requires 2 x AAA batteries (included)
- Materials: aluminium body, ABS plastic blades
- DC motor
- Six speed control system
- Recommended for indoor or under cover outdoor use
- Reversible summer/winter mode
- Comes pre-assembled with a 12.7cm rod for easy installation, plus an additional 25.4cm extension rod included in the box for added flexibility in mounting height
- Tri-control system that allows the fan to be controlled with remote, wall control and smart applications at the same time
- Ceiling fans up to 122cm are ideal for rooms under 3m x 3m, those between 122cm and 142cm fit rooms 3m x 3m to 4m x 4m and fans over 142cm suit rooms over 4m x 4m
- Refer to technical drawings for precise measurements for installation
- To be installed by a licensed tradesperson for warranty purposes
Shopping for a business?
Join our Trade+Commercial Program today to access exclusive trade pricing.
116cm
- Overall Size: 43.9cm H x 116cm W x 116cm D
- Overall Drop from Ceiling to Blade: 43.9cm
- Extension Rod Length: 90cm
- Canopy Cover Diameter: 15cm
- Overall Product Weight: 6.12 Kilograms
- Overall Size: 43.9cm H x 132cm W x 132cm D
- Overall Drop from Ceiling to Blade: 43.9cm
- Extension Rod Length: 90cm
- Canopy Cover Diameter: 15cm
- Overall Product Weight: 6.35 Kilograms
- Overall Size: 43.9cm H x 162cm W x 162cm D
- Overall Drop from Ceiling to Blade: 43.9cm
- Extension Rod Length: 90cm
- Canopy Cover Diameter: 15cm
- Overall Product Weight: 7.03 Kilograms
Features
- Type Smart Ceiling Fan; Ceiling Fan with Remote Control; Outdoor Ceiling Fan
- Body Material Aluminium
- Body Material Details Aluminium
- Blade Material Plastic
- Blade Material Details ABS Plastic
- Number of Blades 3
- Number of Speeds 6
- Summer/Winter Mode Yes
- Balance Kit Yes
- Minimum ceiling height for safe installation 240 Centimetres (cm)
- Power Source Type Hardwired
- Control Type Remote Control; Wall Control
- Body Finish Matte
- Remote Control Included Yes
- Wall Control Included Yes
- Outdoor Use Yes
- Maximum Air Movement (116cm) 14940 Cubic Metres
- Maximum Air Movement (132cm) 15960 Cubic Metres
- Maximum Air Movement (162cm) 21040 Cubic Metres
- Suggested Room Size (116cm) Up to 12 sq metres
- Suggested Room Size (132cm) Up to 18 sq metres
- Suggested Room Size (162cm) Up to 30 sq metres
- Motor Type (116cm) 30W DC motor
- Motor Type (132cm) 35W DC motor
- Motor Type (162cm) 45W DC motor
- Blade Finish (Black, White Colour) Matte
- Blade Finish (White & Oak, Black & Walnut Colour) Woodgrain
- Number of RPM (Revolutions per minute) , Revolutions per minute) 250
- Number of RPM (Revolutions per minute) (162cm) 220
Box Contents
- 1 x smart ceiling fan with DC motor
- 3 x fan blades
- 1 x remote control
- 2 x AAA batteries
- 1 x wall control
- 1 x balance kit
- 1 x 12.7cm extension
- 1 x 25.4cm extension rod
- 1 x assembly manual
Assembly
- Assembly Required Yes
- Type of Assembly Minimal
- Recommended Persons Required for Assembly 1
- Tools required & NOT provided Screwdriver; Electric Drill
- Assembly Details Assembly instructions included with the product
- Installation Required Yes
- Electrician to Install Yes
Warranty
6 Years
Product Warranty Details
3 Years for the product; 6 Years for the motor; 1 Year for the remote
Specifications
- Batteries Required Yes
- Batteries Included Yes
- Battery Quantity 2
- Battery Type AAA
- Electrical Appliance Compliant Yes
Care Instructions
Regular clean to maintain optimal performance; wipe clean with lint free cloth; do not use harsh solvents; regular tighten of screws
About the Manufacturer
Vencha is an Australian owned wholesale lighting supplier, specialising in on trend lighting. With decades of experience in the lighting industry, we know how to deliver high quality products that are in demand for clients and customers.
We offer an extensive range of products, from LED strips, aluminium channels, outdoor lighting, track lighting, globes, downlights, LED battens, LED oysters, winches, pendants and more!
