SKU #: VNCH1017

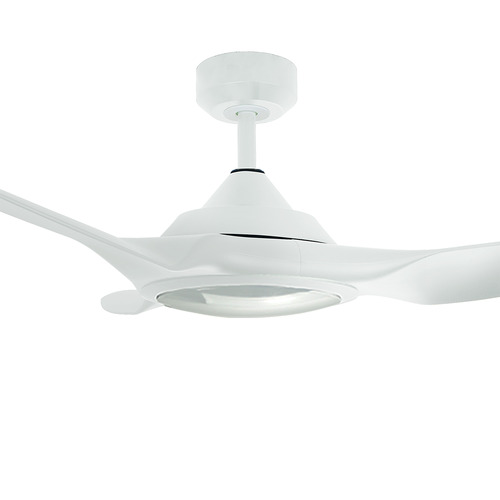

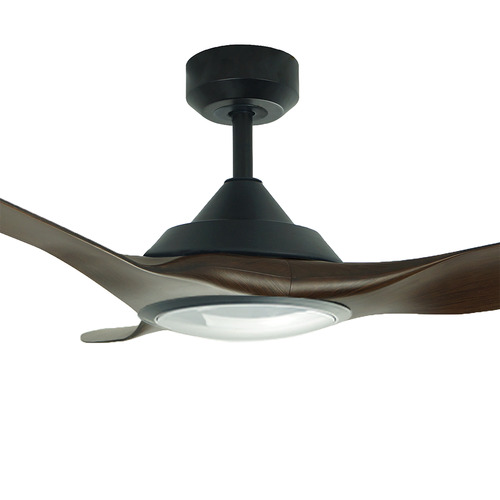

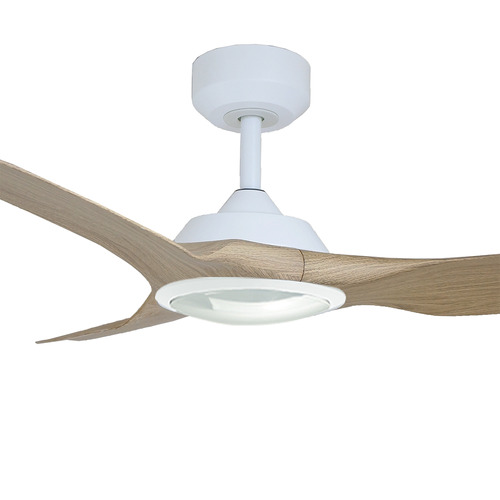

The Raven RWS DC smart ceiling fan with LED light combines a DC motor and a tri-control system for operation via its remote control, a wall control, and smart applications. Its six speed settings and reversible summer-winter mode let you tailor airflow year-round, while the integrated dimmable LED light provides adjustable illumination. The aluminium body has a matte finish and suits indoor and under-cover outdoor spaces. An included balance kit and canopy assist with stability and create a tidy ceiling profile. The tri-control system allows simultaneous control options.
Features:
- Includes: 1 x smart ceiling fan with DC motor, 3 x fan blades, 1 x remote control, 2 x AAA batteries, 1 x wall control, 1 x 12.7cm rod, 1 x 25.4cm rod, 1 x LED light kit, 1 x balance kit, 1 x fixing kit, 1 x assembly manual
- Remote control requires 2 x AAA batteries (included)
- Materials: aluminium body, ABS plastic blades, polycarbonate light cover
- DC motor
- Six speed remote control
- Reversible summer/winter mode
- Recommended for indoor or under cover outdoor use
- Tri-control system that allows the fan to be controlled with remote control, wall control and smart applications at the same time
- Ceiling fans up to 122cm are ideal for rooms under 3m x 3m, those between 122cm and 142cm fit rooms 3m x 3m to 4m x 4m and fans over 142cm suit rooms over 4m x 4m
- Refer to technical drawings for precise measurements for installation
- Should be installed by a licensed tradesperson for warranty purposes
Shopping for a business?
Join our Trade+Commercial Program today to access exclusive trade pricing.
116cm
- Overall Size: 31.2cm H x 116cm W x 116cm D
- Overall Drop from Ceiling to Blade: 43.9cm
- Canopy Cover Diameter: 15cm
- Overall Product Weight: 6.88 Kilograms
- Overall Size: 31.2cm H x 132cm W x 132cm D
- Overall Drop from Ceiling to Blade: 43.9cm
- Canopy Cover Diameter: 15cm
- Overall Product Weight: 7.11 Kilograms
- Overall Size: 31.2cm H x 162cm W x 162cm D
- Overall Drop from Ceiling to Blade: 43.9cm
- Canopy Cover Diameter: 15cm
- Overall Product Weight: 7.79 Kilograms
Features
- Type Ceiling Fan with Light; Ceiling Fan with Remote Control; Smart Ceiling Fan; Outdoor Ceiling Fan
- Body Material Aluminium
- Blade Material Plastic
- Blade Material Details ABS plastic
- Number of Blades 3
- Blade Pitch 16 Degrees
- Number of Speeds 6
- Summer/Winter Mode Yes
- Balance Kit Yes
- Minimum ceiling height for safe installation 210 Centimetres (cm)
- Power Source Type Hardwired
- Control Type Remote Control; Wall Control
- Light Kit Included Yes
- Light Cover Material Polycarbonate
- Number of Bulbs 1
- Bulb Type LED
- Bulb(s) Included Yes
- Dimmable Yes
- Bulb Wattage (162cm Blade Span) 69 W
- Bulb Wattage (132cm Blade Span) 59 W
- Bulb Wattage (116cm Blade Span) 54 W
- Body Finish Matte
- Remote Control Included Yes
- Wall Control Included Yes
- Outdoor Use Yes
- Commercial Use Yes
- Maximum Air Movement (116cm) 14940 Cubic Metres
- Maximum Air Movement (132cm) 15960 Cubic Metres
- Maximum Air Movement (162cm) 21040 Cubic Metres
- Suggested Room Size (116cm) Up to 12 sq metres
- Suggested Room Size (132cm) Up to 18 sq metres
- Suggested Room Size (162cm) Up to 30 sq metres
- Motor Type (116cm) 30W DC motor
- Motor Type (132cm) 35W DC motor
- Motor Type (162cm) 45W DC motor
- Blade Finish (Black, White Colour) Matte
- Blade Finish (Oak & White, Walnut & Black Colour) Woodgrain
- Number of RPM (Revolutions per minute) , Revolutions per minute) 250
- Number of RPM (Revolutions per minute) (162cm) 220
Box Contents
- 1 x smart ceiling fan with DC motor
- 3 x fan blades

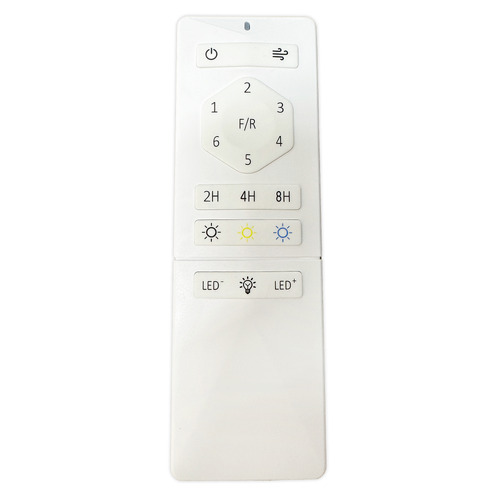

- 1 x remote control
- 2 x AAA batteries

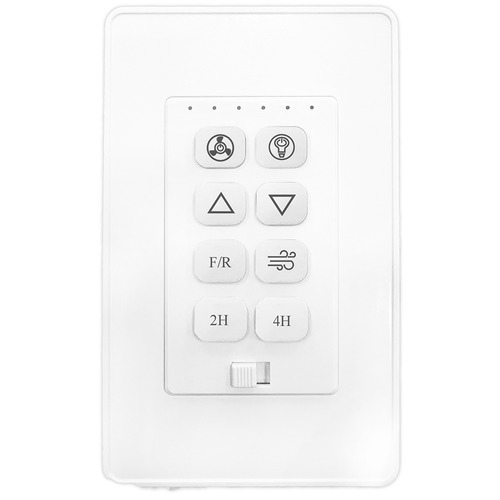

- 1 x wall control
- 1 x 12.7cm rod
- 1 x 25.4cm rod
- 1 x LED light kit
- 1 x balance kit
- 1 x fixing kit
- 1 x assembly manual
Assembly
- Assembly Required Yes
- Type of Assembly Full
- Recommended Persons Required for Assembly 1
- Tools required & NOT provided Screwdriver
- Assembly Details Assembly instructions included with the product
- Installation Required Yes
- Electrician to Install Yes
Warranty
6 Years
Product Warranty Details
3 Years for the product; 6 Years for the motor; 1 Year for the remote
Specifications
- Batteries Required Yes
- Batteries Included Yes
- Battery Quantity 2
- Battery Type AAA
- IP Rating (Ingress Protection) IP20
- Electrical Appliance Compliant Yes
Care Instructions
Regular clean to maintain optimal performace; wipe clean with lint free cloth; do not use harsh solvents; regular tighten of screws
About the Manufacturer
Vencha is an Australian owned wholesale lighting supplier, specialising in on trend lighting. With decades of experience in the lighting industry, we know how to deliver high quality products that are in demand for clients and customers.
We offer an extensive range of products, from LED strips, aluminium channels, outdoor lighting, track lighting, globes, downlights, LED battens, LED oysters, winches, pendants and more!
Additional Documents
Download Spec Sheet
See something odd?
Report it here.
Reviews
Read our review Publishing Guidelines
Incentives to write honest reviews may be offered to people who have purchased the item
5 stars
18 Apr 2026
Verified buyer
I purchased 3 of these for bedrooms and lounge. Very happy with the functionality, quality and look of these. Recommend getting the LED light kit add-on. The light output from these is amazing.
5 stars
4 Dec 2025
Verified buyer
Great product, easy to install, looks good and works well
FAQs
How can this ceiling fan be controlled?
The fan supports simultaneous control through the included remote control, wall control and smart applications. The remote requires two AAA batteries, which are included.
Does it include an adjustable light?
Yes, it includes an integrated dimmable LED light with one bulb and a polycarbonate cover. This provides adjustable illumination alongside the fan.
What installation is required?
Full assembly and hardwired installation are required, with a screwdriver needed but not included. It should be installed by a licensed tradesperson for warranty purposes.
Can this fan be used outdoors?
It is recommended for indoor or under-cover outdoor use and has an aluminium body, ABS plastic blades and a polycarbonate light cover. It is not coastal rated.
What fan settings does it offer?
The DC motor has six speed settings and a reversible summer-winter mode, allowing airflow to be adjusted throughout the year. It is available in multiple blade-span and colour options to help you choose a configuration for your space.
