SKU #: RDNT1060
Undertile Cable Mat Heating Kit RDNT1060 provides discreet underfloor heating for tiled or screeded rooms. Constructed from metal, it offers a sustainable and economical way to deliver comfortable, evenly distributed warmth across the floor. Fully controllable with digital thermostat controllers, it lets you set precise temperatures for daily comfort. Designed with renovation projects in mind, it works well in bathrooms and other tiled spaces to add constant cosy warmth underfoot while keeping the floor surface even and ready for your chosen finishes and style.
Features:
- Materials: PTFE insulated copper alloy cable, fibre glass mesh

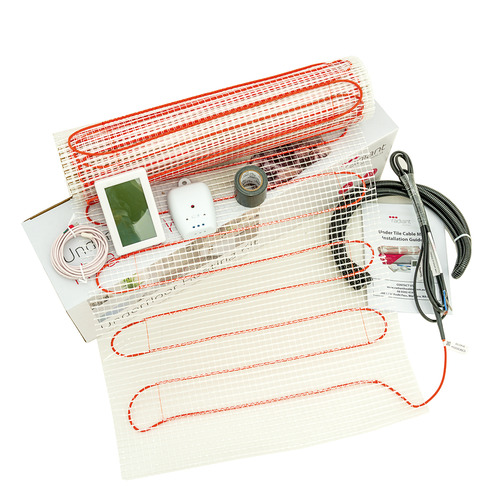

- Includes: 1 x heating cable on mat, 1 x cable alarm, 1 x cloth duct tape, 1 x instruction manual, 1 x CR1220 battery
- Offers a sustainable & economical heating solution, delivering comfortable, evenly distributed temperatures throughout your room
- Easy-to-install & fully controllable from digital thermostat controllers that cover areas up to 23m²
- A suitable option if you are renovating a bathroom or a room which is going to be tiled or screeded
- The mats are easily installed by cutting the matting (not the cable) & snaking the mat backwards & forwards filling in the area to be heated
- Requires 1 x CR1220 battery (included)
- Each kit includes two mats, which is why there are two different sizes available.
Shopping for a business?
Join our Trade+Commercial Program today to access exclusive trade pricing.
1.2m²-1.7m²
- Overall: 50cm H x 200cm W x 0.3cm D
- Overall Product Weight: 5 Kilograms
- Overall: 50cm H x 300cm W x 0.3cm D
- Overall Product Weight: 5 Kilograms
- Overall: 50cm H x 400cm W x 0.3cm D
- Overall Product Weight: 5 Kilograms
- Overall: 50cm H x 500cm W x 0.3cm D
- Overall Product Weight: 5 Kilograms
- Overall: 50cm H x 600cm W x 0.3cm D
- Overall Product Weight: 5 Kilograms
- Overall: 50cm H x 700cm W x 0.3cm D
- Overall Product Weight: 5 Kilograms
- Overall: 50cm H x 800cm W x 0.3cm D
- Overall Product Weight: 5 Kilograms
- Overall: 50cm H x 900cm W x 0.3cm D
- Overall Product Weight: 5 Kilograms
- Overall: 50cm H x 1000cm W x 0.3cm D
- Overall Product Weight: 5 Kilograms
- Overall: 50cm H x 1100cm W x 0.3cm D
- Overall Product Weight: 5 Kilograms
- Overall: 50cm H x 1200cm W x 0.3cm D
- Overall Product Weight: 5 Kilograms
- Overall: 50cm H x 1200cm W x 0.3cm D
- Overall Product Weight: 5 Kilograms
- Overall: 50cm H x 1400cm W x 0.3cm D
- Overall Product Weight: 5 Kilograms
- Overall: 50cm H x 1400cm W x 0.3cm D
- Overall Product Weight: 5 Kilograms
- Overall: 50cm H x 1600cm W x 0.3cm D
- Overall Product Weight: 5 Kilograms
- Overall: 50cm H x 1600cm W x 0.3cm D
- Overall Product Weight: 5 Kilograms
- Overall: 50cm H x 1800cm W x 0.3cm D
- Overall Product Weight: 5 Kilograms
- Overall: 50cm H x 2000cm W x 0.3cm D
- Overall Product Weight: 5 Kilograms
- Overall: 50cm H x 2200cm W
- Overall Product Weight: 5 Kilograms
- Overall: 50cm H x 2400cm W x 0.3cm D
- Overall Product Weight: 5 Kilograms
- Overall: 50cm H x 1400cm W x 0.3cm D
- Overall Product Weight: 5 Kilograms
- Overall: 50cm H x 1400cm W x 0.3cm D
- Overall Product Weight: 5 Kilograms
- Overall: 50cm H x 1600cm W x 0.3cm D
- Overall Product Weight: 5 Kilograms
- Overall: 50cm H x 1600cm W x 0.3cm D
- Overall Product Weight: 5 Kilograms
- Overall: 50cm H x 1800cm W x 0.3cm D
- Overall Product Weight: 5 Kilograms
- Overall: 50cm H x 1800cm W x 0.3cm D
- Overall Product Weight: 5 Kilograms
- Overall: 50cm H x 2000cm W x 0.3cm D
- Overall Product Weight: 5 Kilograms
- Overall: 50cm H x 2000cm W x 0.3cm D
- Overall Product Weight: 5 Kilograms
- Overall: 50cm H x 2200cm W x 0.3cm D
- Overall Product Weight: 5 Kilograms
- Overall: 50cm H x 2200cm W x 0.3cm D
- Overall Product Weight: 5 Kilograms
- Overall: 50cm H x 2400cm W x 0.3cm D
- Overall Product Weight: 5 Kilograms
Features
- Type Underfloor Heating
- Voltage/Frequency 240 V
- Remote Control Included No
- Primary Material Metal
- Primary Material Details PTFE insulated copper alloy cable, fibre glass mesh
- Power Input (1.2m²-1.7m²) 200 W
- Power Input (1.8m²-2.2m²) 300 W
- Power Input (2.3m²-2.7m²) 400 W
- Power Input (2.8m²-3.2m²) 500 W
- Power Input (3.3m²-3.7m²) 600 W
- Power Input (3.8m²-4.2m²) 700 W
- Power Input (4.3m²-4.7m²) 800 W
- Power Input (4.8m²-5.2m², 6m²-7.9m² Area 900 W
- Power Input (5.3m²-5.9m²) 1000 W
- Power Input (6m²-6.6m²) 1100 W
- Power Input (6.7m²-7.5m², 9m²-9.9m² Area 1200 W
- Power Input (7.5m²-9m²) 1400 W
- Power Input (8m²-8.9m²) 1050 W
- Power Input (9m²-10.5m²) 1600 W
- Power Input (10m²-11m²) 1350 W
- Power Input (11m²-12m²) 1500 W
- Power Input (12m²-13m²) 1650 W
- Power Input (13m²-14m²) 1800 W
- Power Input (14m²-16m²) 1950 W
- Power Input (16m²-17m²) 2100 W
- Power Input (17m²-18m²) 2250 W
- Power Input (18m²-19m²) 2400 W
- Power Input (19m²-20m²) 2550 W
- Power Input (20m²-21m²) 2700 W
- Power Input (21m²-23m²) 2850 W
- Power Input (22m²-24m²) 3000 W
- Power Input (23m²-26m²) 3150 W
- Power Input (25m²-27m²) 3300 W
- Power Input (26m²-28m²) 3450 W
Warranty
10 Years
Specifications
- Batteries Required Yes
- Batteries Included Yes
- Battery Quantity 2
- Battery Type AAA
- Battery Chemistry Alkaline
About the Manufacturer
Radiant Australia are at the forefront of providing quality bathroom accessories. They are one of the largest and most respected suppliers of heated towel rails, electric under floor heating and other associated bathroom products in Australia.
See something odd?
Report it here.
Reviews
Read our review Publishing Guidelines
Incentives to write honest reviews may be offered to people who have purchased the item
5 stars
22 Jun 2025
Verified buyer
5 stars
1 Oct 2023
Verified buyer
My new ensuite floor is so toastie now, Love it !! Was such an easy installation
5 stars
8 Mar 2026
Verified buyer
FAQs
What kind of rooms can this underfloor heating kit suit?
It is intended for tiled or screeded rooms, including bathrooms and other renovation projects. The heating sits beneath the floor finish while keeping the surface even and ready for tiling or screeding.
What area options are available?
This kit comes in 31 area options, so you can choose the configuration that best suits your space. The available options cover areas from 1.2m² to 28m².
How is the heating mat installed?
The matting can be cut and snaked backwards and forwards to fill the area being heated, but the cable itself must not be cut. No assembly is required, and the kit includes an instruction manual.
Can I control the floor temperature?

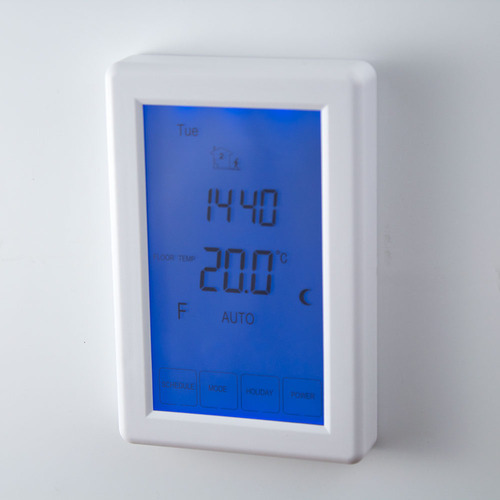

Yes, the heating is fully controllable with digital thermostat controllers, which cover areas up to 23m². This allows precise temperature settings for everyday use.
What is included with the heating kit?
The kit includes two heating mats, a cable alarm, cloth duct tape, an instruction manual and one CR1220 coin battery. The heating system uses a PTFE-insulated copper alloy cable with fibre glass mesh.
